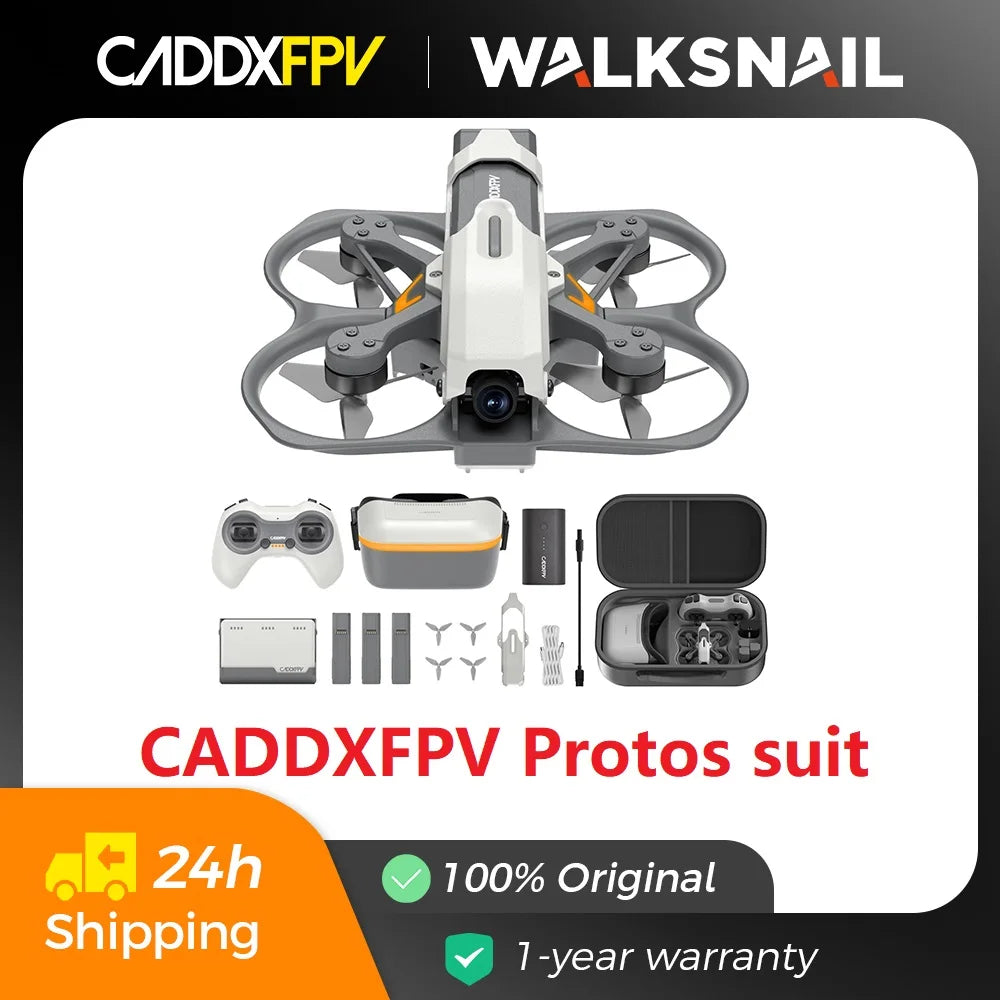

CADDX Protos FPV Drone RTF Kit ELRS Receiver and Goggles
CADDX Protos FPV Drone RTF Kit ELRS Receiver and Goggles
Couldn't load pickup availability
Instant control meets immersive FPV visuals, letting you fly with confidence and capture every moment.
,
,
,
,
,
,
,
,
,
,
,
,
,
,
- Feather-light design and signal stability: Feather-light 6g HD VTX keeps your quad light, boosts signal stability, and enhances maneuverability during quick lifts and dives, giving you sharper responses for cinematic flips and precise landings.
- A-Link ELRS 2.4GHz performance: A-Link ELRS 2.4GHz delivers millisecond-level response for a true one-to-one link, so you can enjoy Smart Hover, Fail-Safe Lock, and confident control in tight spaces and windy conditions.

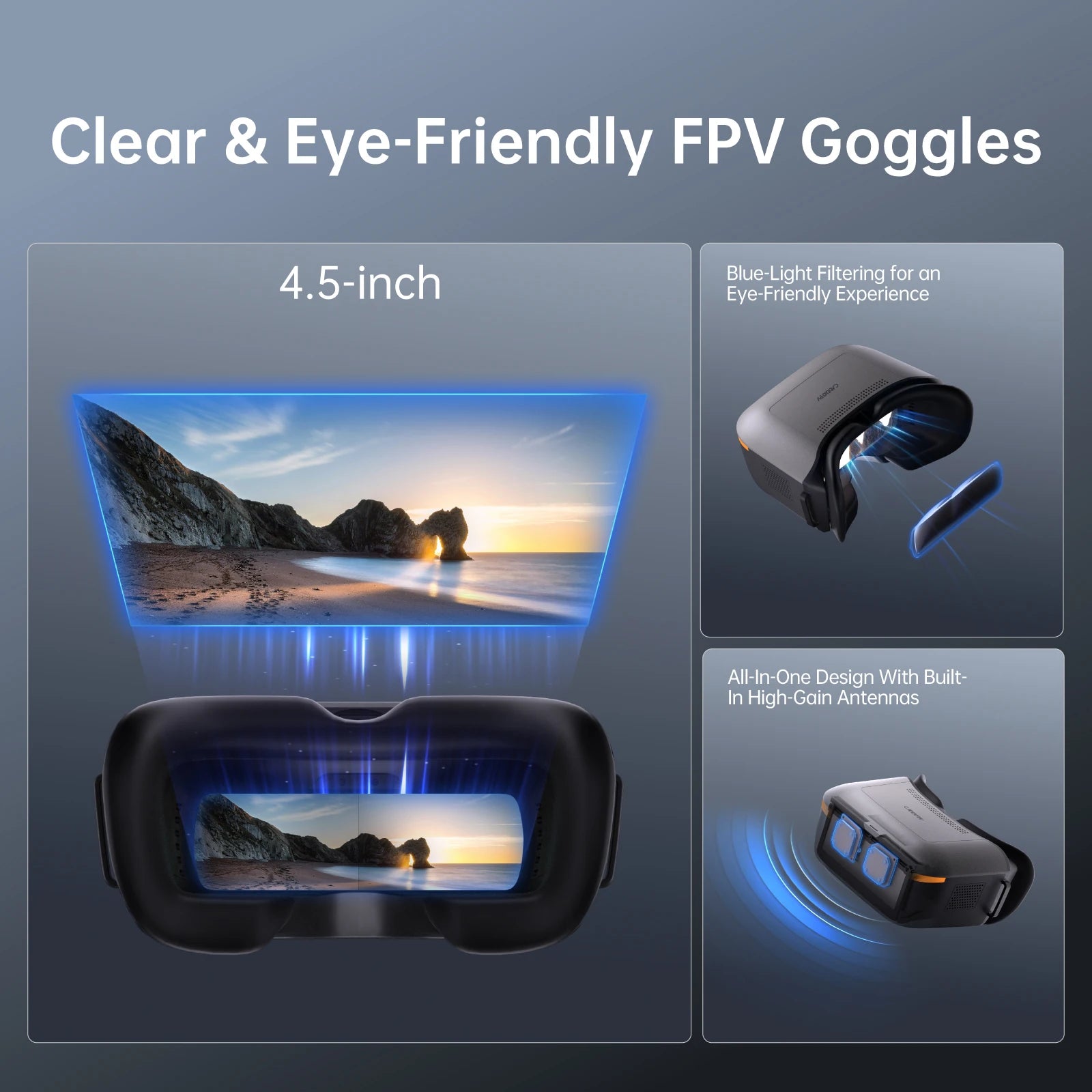

- Immersive FPV goggles and display: The 4.5-inch FPV display in CADDX Ascent Goggles delivers 1080p/60fps video, 0.01 Lux low-light sensitivity, and a 147° FOV, so you can see every detail clearly and reduce eye strain during long sessions.

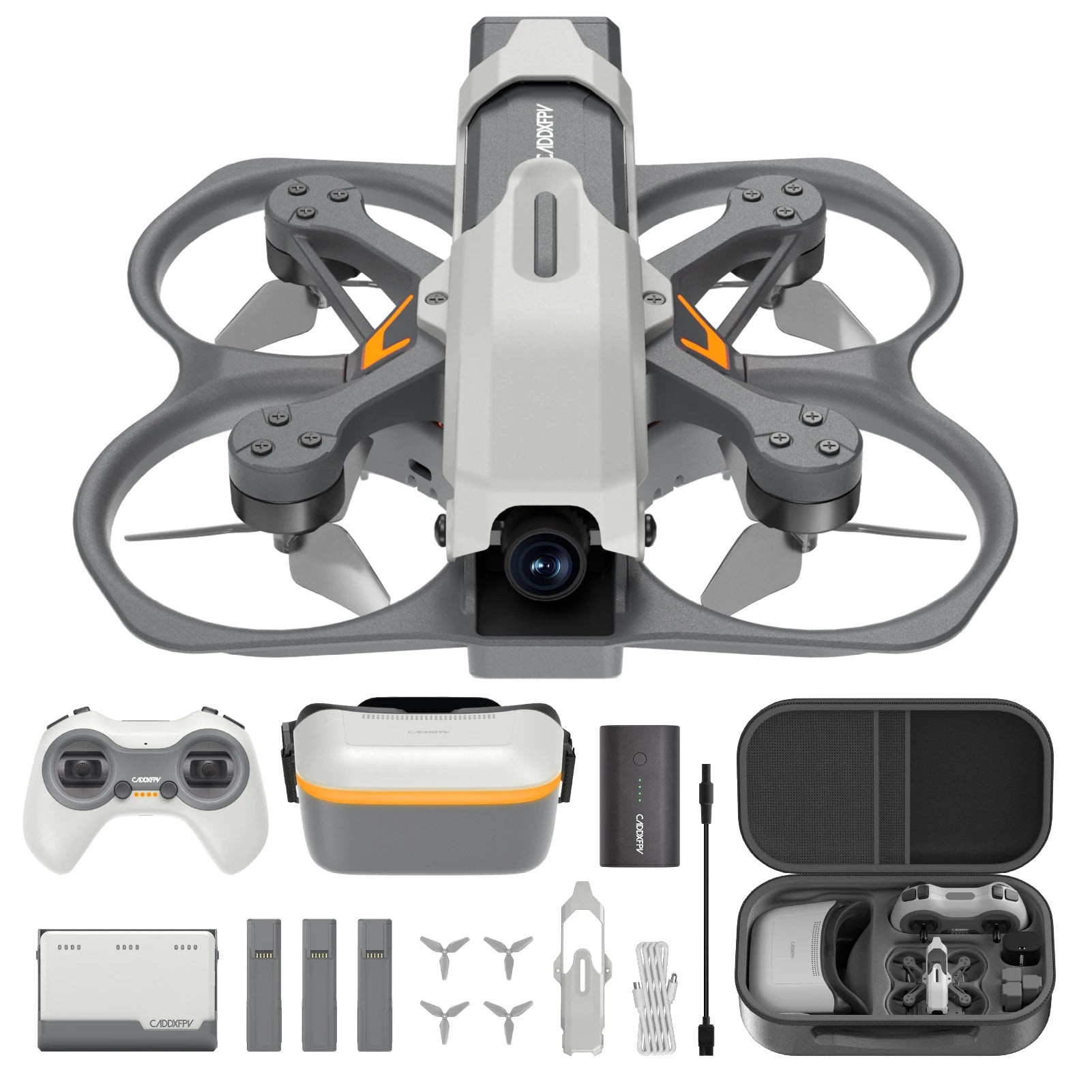

- Complete Ready-to-Fly package: Everything you need arrives in one Ready-to-Fly kit: camera, batteries, remote, USB cable, and instructions, designed for indoor-outdoor use with up to 3 km remote reach, plus extra accessories neatly organized for quick setup.
PROTOS | FC | VTX | |||||
Flight Control | Caddx Protos Aio 1.0 | Main Control Chip | STM32-F405RGT6 | VTX Model | Ascent Lite | ||
Video Transmission | Ascent Lite | Gyroscope | BMI270 | Image Sensor | 1 / 2.8 inch Sensor | ||
Motor Diagonal Distance | 78mm | Barometer | SPL06 | FOV | 147° | ||
Motor | 1102 14000KV | Onboard Receiver | ESP8285 | Ratio | 16:9 | ||
Propeller | HQprop U40mm×3GR-PC-1.5mm | Receiver Protocol | ELRS 2.4GHz | Resolution | 1080P 60FPS;720P 60FPS | ||
Weight | 104.4g±1.5g | ESC Protocol Compatibility | Bluejay / BLHeli-S Optional | Built-in Storage | N/A | ||
Dimensions | 110x102.8x41mm | ESC Maximum Current | 12A (Single Channel) | Max Transmission Range | Max 3km | ||
Flight Endurance | 8.5min ±0.5min | Latency | Average delay 35ms | ||||
RC Receiver | ELRS 2.4GHz | Power | 25~100mW |
Ascent Goggles | |
Communication Frequency | 5.725-5.850GHZ |
Transmit Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |
Transmission Resolution | 1080P60FPS, 720P60FPS |
Code Rate | Max 50 Mbps |
Minimum Latency | Average 32ms |
Average Gain | 4.9dBi |
Polarization | LHCP |
Transmission Distance | >4km |
Channel | 8 |
Screen Resolution | 1920*1080 / 60Hz |
Screen Material | LCD |
Screen Size | 4.5 Inch |
Wide Voltage Input | 6V~25.2V (2S~6S) |
SD Card Slot | Support 256G |
CADDXFPV Alink | |
Main Control Chip | AT32 F413RCT7 |
RF Module | ELRS 2.4GHZ |
RF Protocol | CRSF |
Max RF Power | 100mW (20dB) |
Number of Available Channels | 10 Channels (including 4 joystick channels) |
Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |
Function Switch | 1 x Latching Button / 2 x Momentary Buttons / |
Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
Charging & Communication Interface | USB-Type C |
Battery Specification | Lipo 1s 1000mAh |
Max Charging Power | 5V / 1A / 3.50W |
Operating Voltage Range | DC 3.50V~4.20V |
Dimensions | 158mmx108mmx58mm |
Weight | 180g±5g |

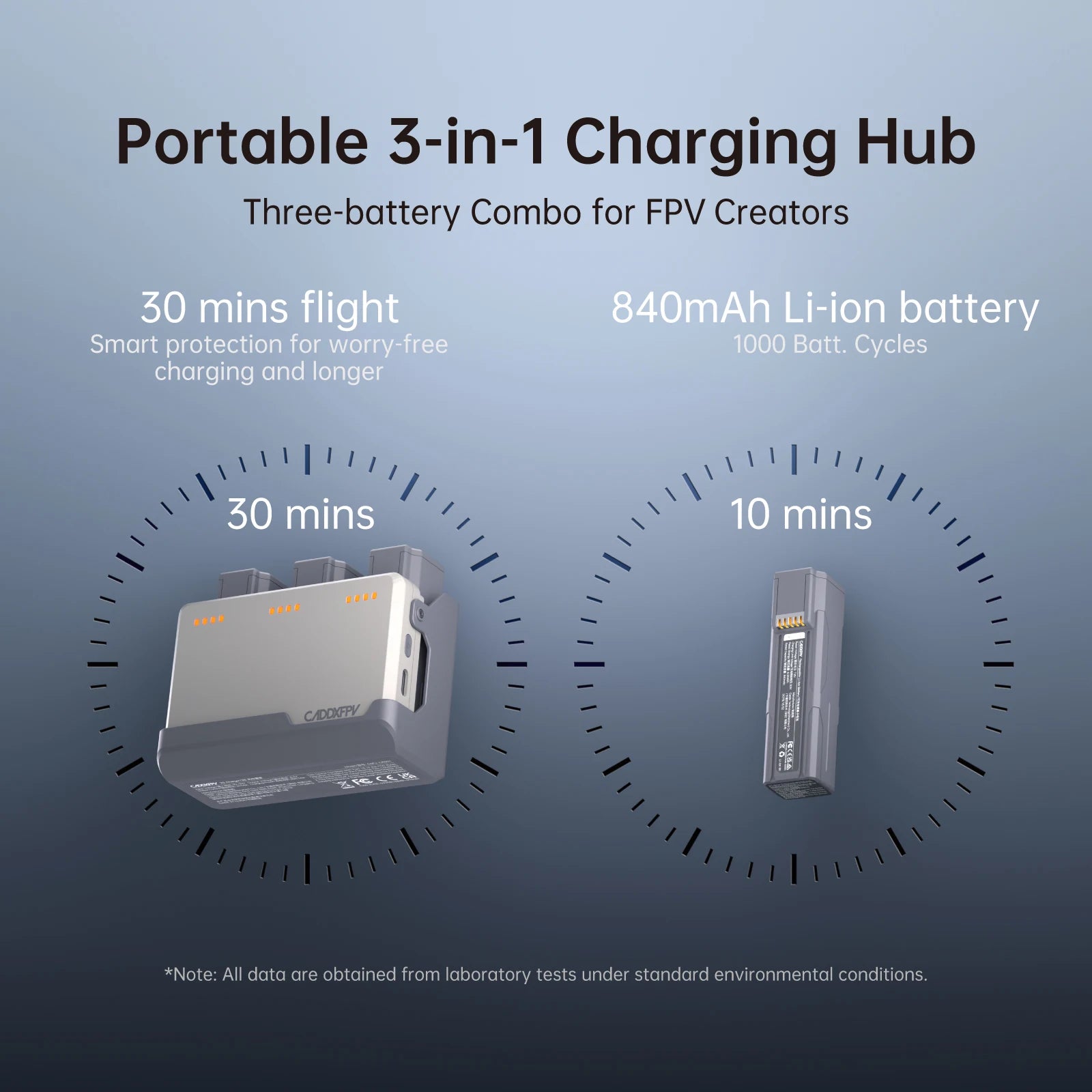

2S Charger | 2S Battery | |||
Name | 2S Charger | Name | 2S Battery | |
Display | LEDx4 | Battery Type | Li-ion (Lithium-ion Battery) | |
Channel | 3 (Sequential Charging) | Battery Capacity | 840mAh | |
Function Selection | Charging, Storage | Battery Specification | 2S1P (2 Cells in Series, 1 in Parallel) | |
Battery Type | Li-ion 2S 840mAh Battery | Discharge Rate (C-Rate) | 15C | |
Input Voltage | 12‒15V (PD Input, 5V Adapter Not Supported) | Maximum Power | 6.384Wh | |
Output Voltage | 8.7V | Voltage Range | 6.80V~8.70V | |
Input Current | Max.3A | Max Charging Voltage | 8.5V | |
Charging Current | Max.3A | Charging Method | 2S Charger | |
Balancing Current | Max.0.21A | Charging Time | ≤20min | |
Charging Power | Max.25W | Protection Mechanism | When the voltage of a single cell drops below 2.8V, | |
Discharging Power | Total Power: 5W (Max 1.6W per Channel) | Dimensions | 77.5x24x21mm | |
Interface | Type-C | Weight | 41.9g±0.5g | |
Operating Temperature | -10~45℃ | |||
Storage Temperature | -20℃~60℃ | |||
Dimensions | 94x63x39.1mm | |||
Weight | 65±0.5g | |||
